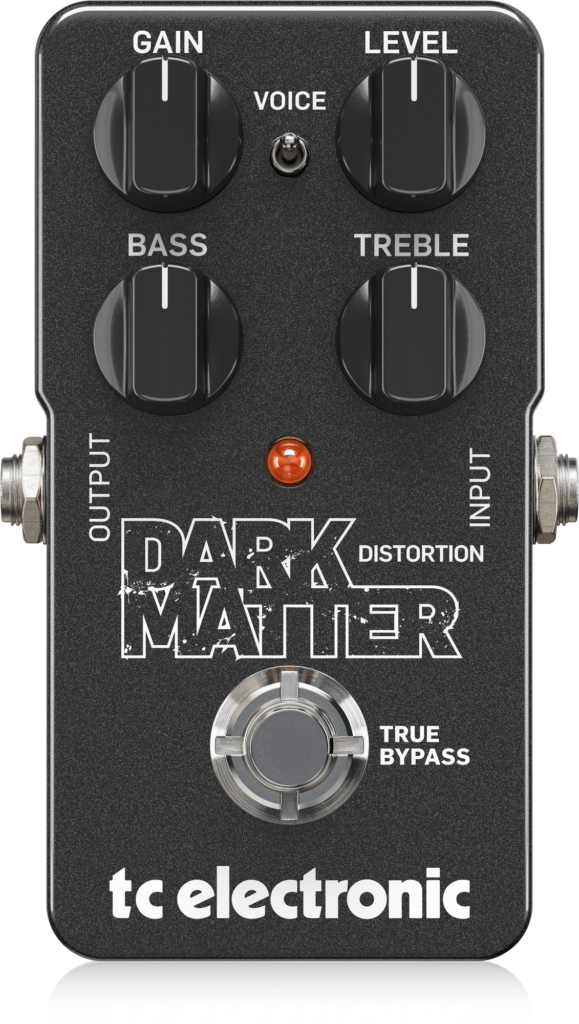

Dark Matter is an analog distortion pedal by TC Electronic.
DarkMatter has common TC Electronic pedal controls layout and features four knobs and one switch:
- Gain
- Level (output stage attenuator)
- Bass (amount of low-end)
- Treble (amount of high-end)
Internally, Dark Matter circuit is nearly the same as the MojoMojo with slight changes:
- Voice toggle alters frequency response whereas in MojoMojo it only changes pre-gain signal level
- Narrower tone control
- Higher pre-gain signal boost
- Lower post-gain boost
- Narrower gain range
Source: Traced schematic of Dark Matter by DraftYeti5608 on Reddit.
Like other TC Electronic pedals of the line, Dark Matter features easy battery access with only one screw at the bottom.
- Type: Distortion
- Analog
- True bypass
- Inputs: 1 x 6.25mm (1 x 1/4″) TS
- Outputs: 1 x 6.25mm (1 x 1/4″) TS
- Dimensions: 72 x 122 x 50 mm
- Power consumption: 9V
- Polarity: center-negative
- In production since: May 2011
Analogs: Boss DS-1 Distortion, ProCo RAT
